THE BEST WAY TO ZWIFT JUST GOT BETTER

What is new?

• Improved rider fit profiles
• Saddle fore and aft movement up to +60mm.
• Adjustable crank lengths fit out of the box (160, 165, 170, 172.5, 175mm)
• Larger diameter handlebar tops for increased comfort whilst riding
• A geometry update to accommodate shorter riders starting from 146cm (4’ 10)

With adjustable cranks and expanded saddle adjustment, the new Zwift Ride makes it easier than ever to dial in your fit. More comfort, more adjustability, and a better fit for more riders.

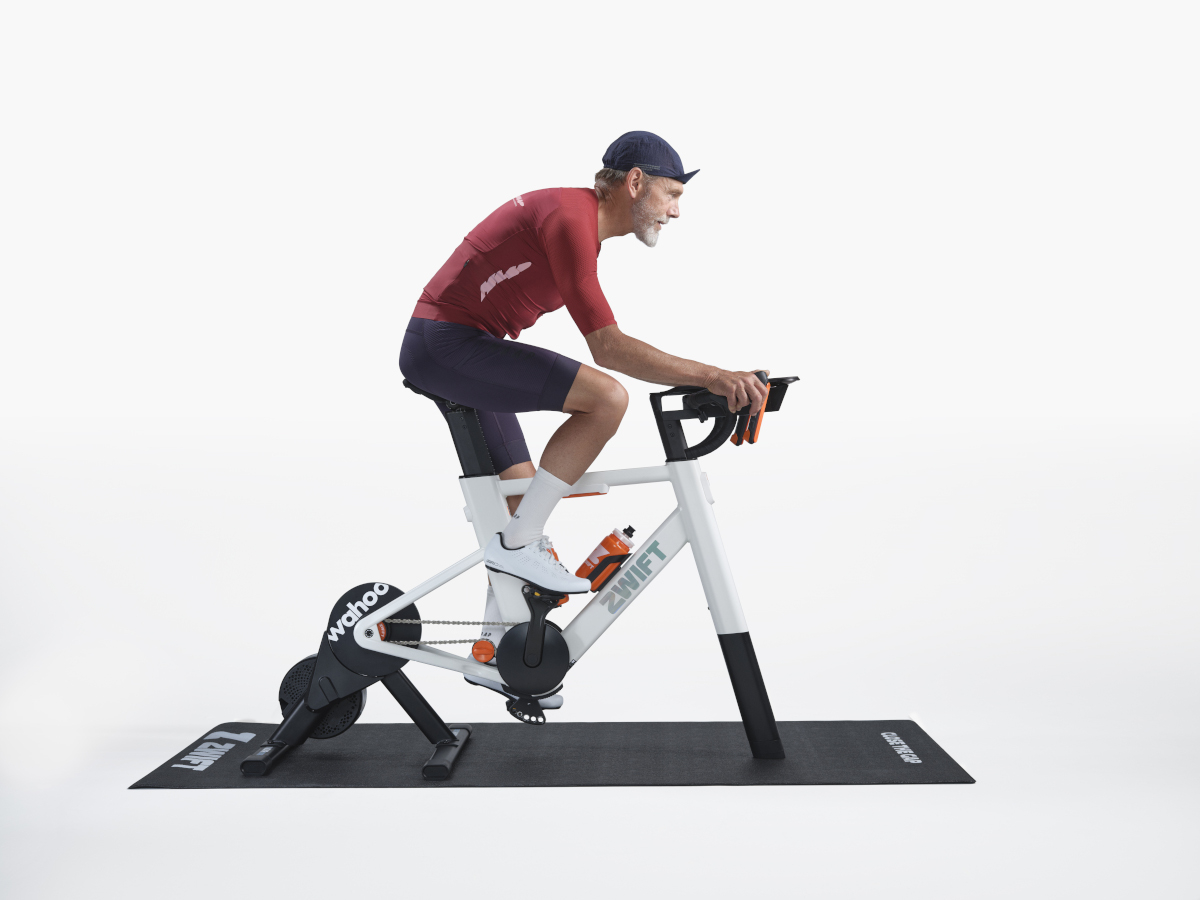

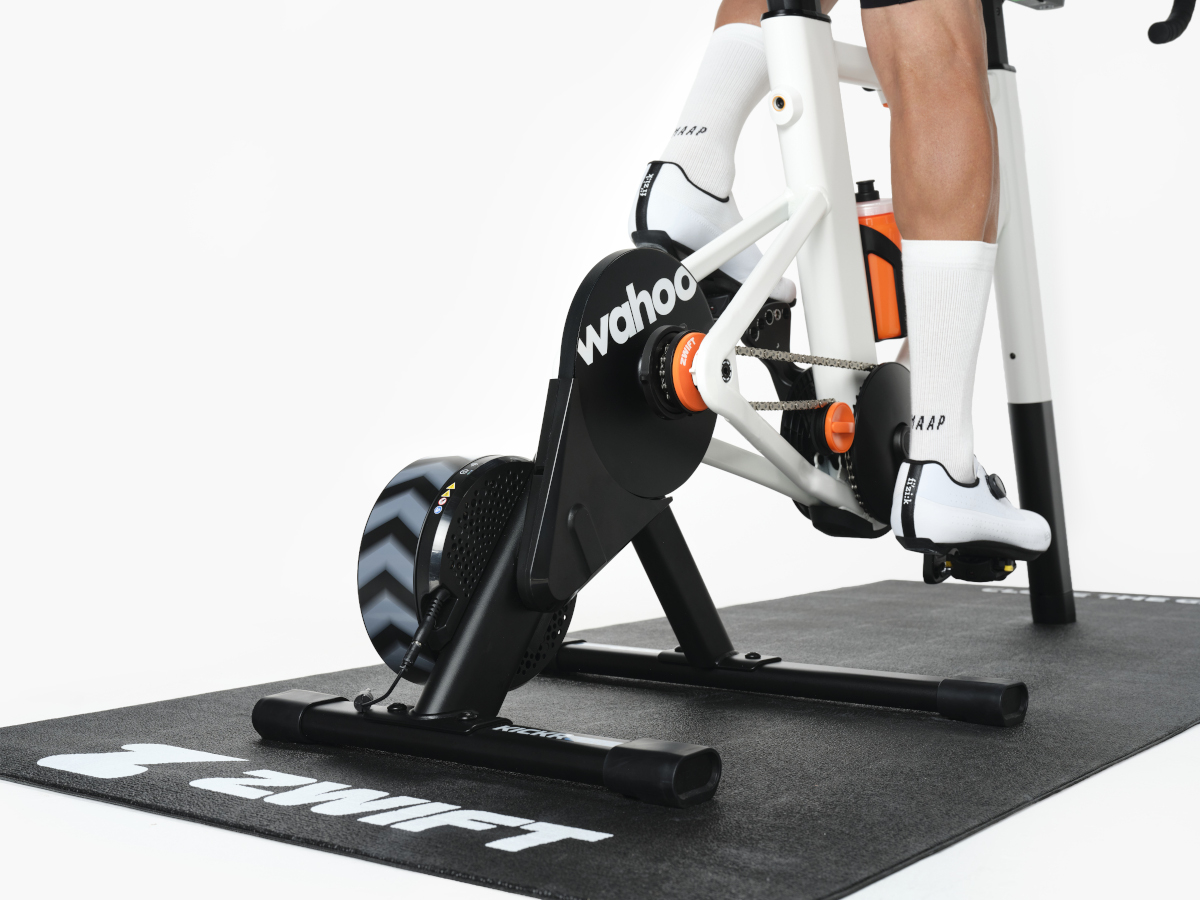

The always-ready smart bike from Zwift is an all-in-one indoor cycling setup that makes fitness seriously fun.  Boost your training with a real ride feel, quiet and customizable virtual gear shifting, and full control of Zwift from your handlebars. Zwift Ride with KICKR CORE 2 unlocks the ultimate Zwift experience.

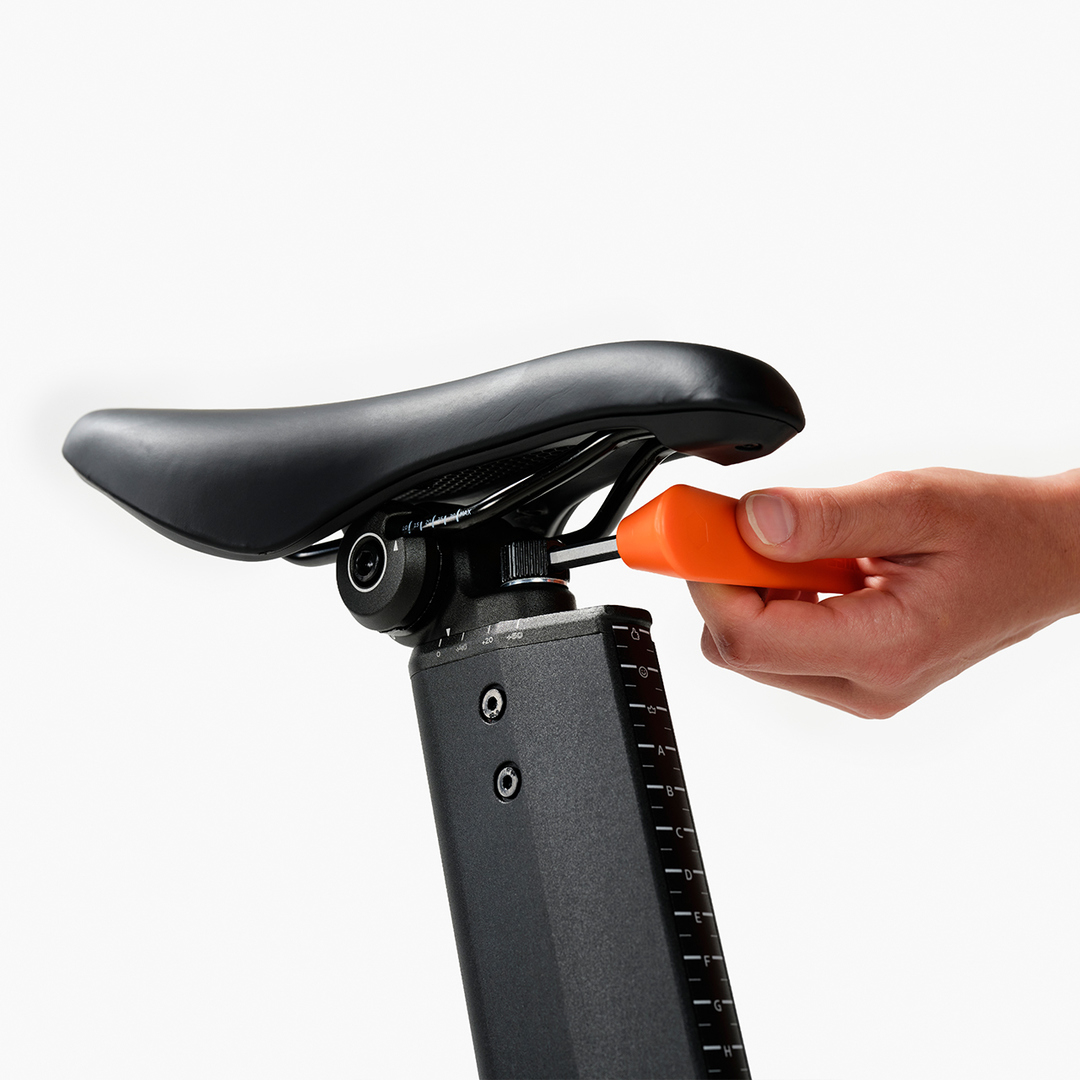

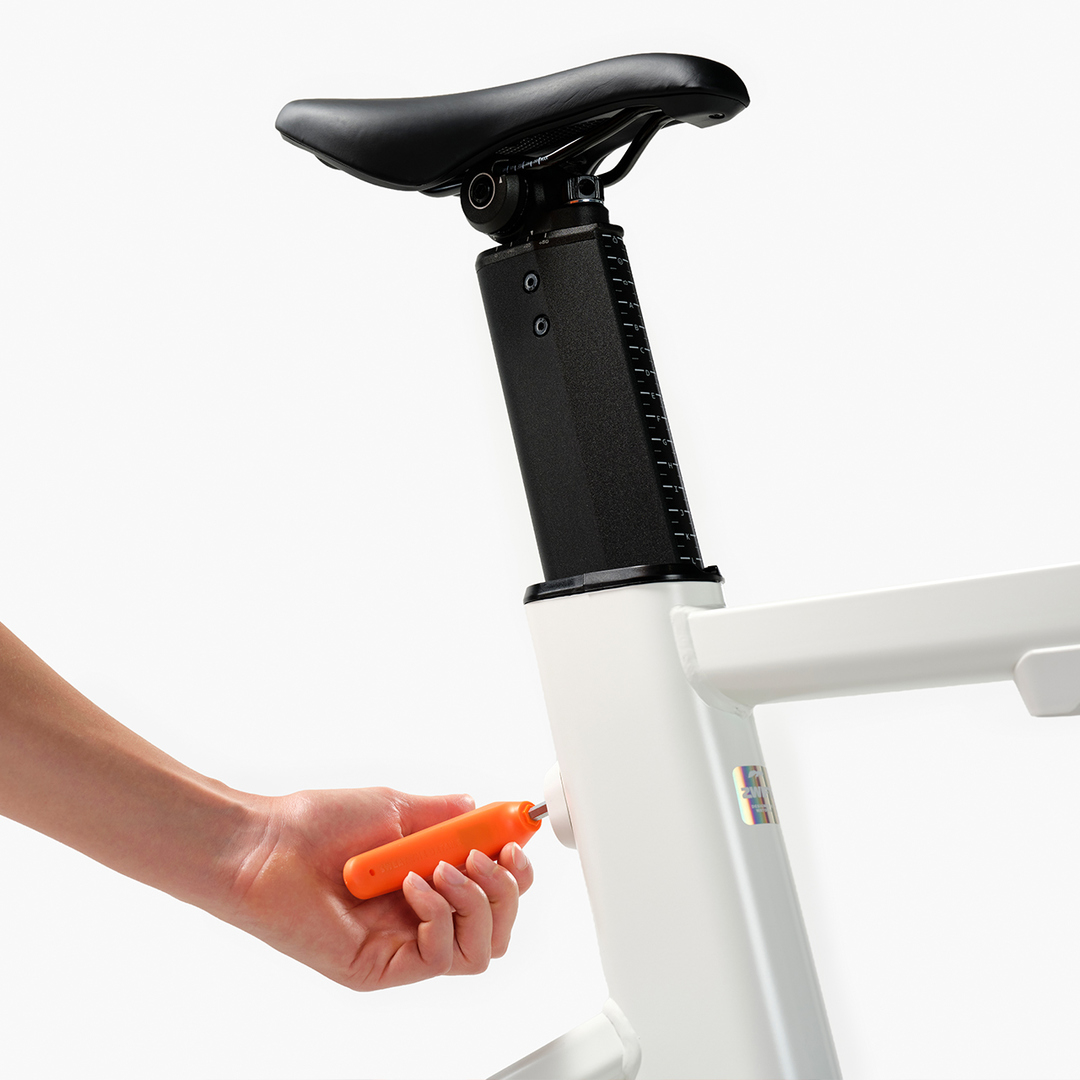

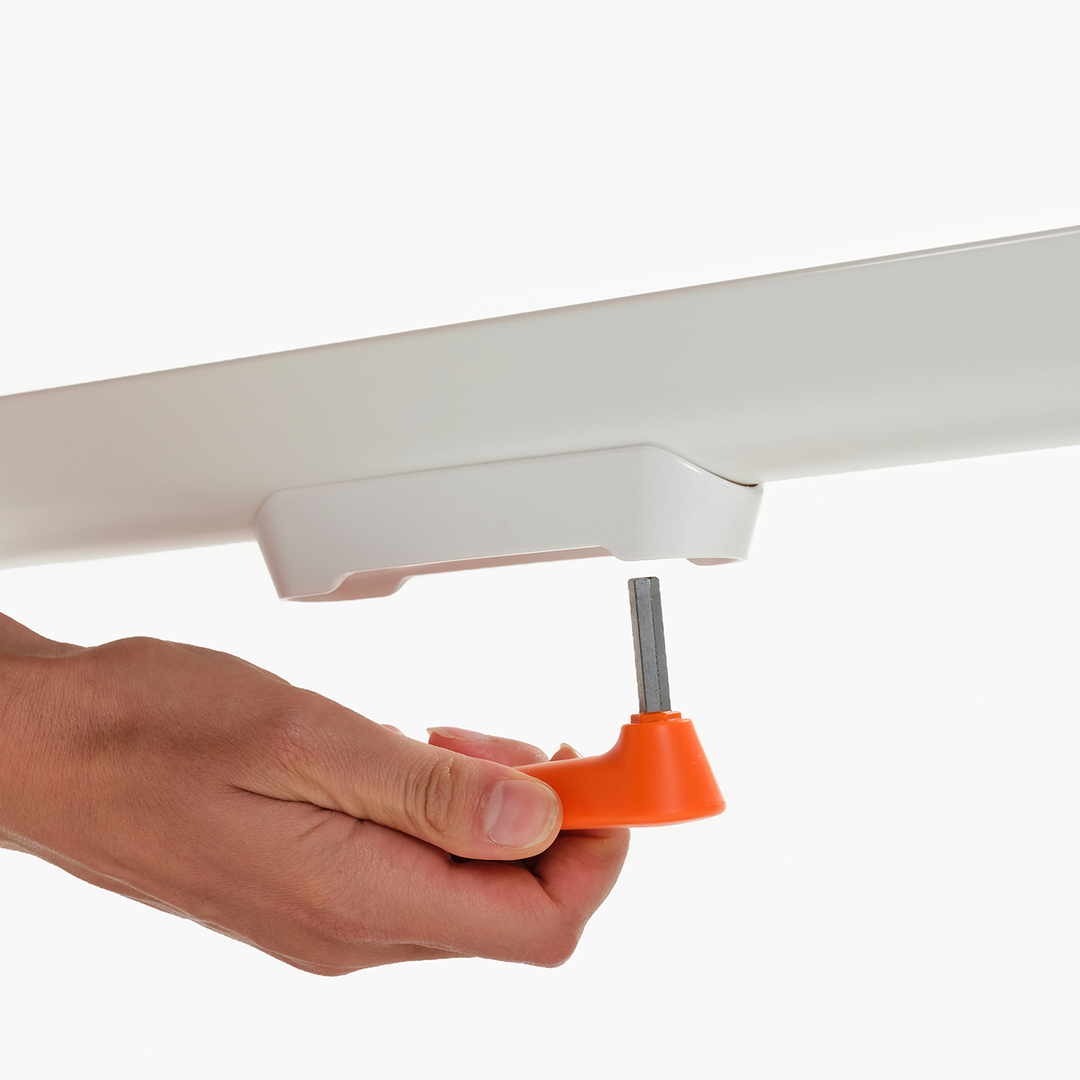

Designed with simplicity in mind, a single tool that stows away on the frame is all it takes to assemble, dial in your bike fit, and adjust between users. Zwift Ride is everything you need to get started on Zwift and Rouvy.

The new Zwift Ride features multiple crank lengths, more saddle adjustability, and redesigned, larger-diameter handlebars, making it easier than ever to get set up, get comfortable, and start riding.

FEATURES

All-In-One
With everything you need to start Zwifting, Zwift Ride is your complete indoor cycling setup.

Always Ready
Zwift Ride is ready whenever you are, so you can jump on at a moment’s notice. With an expanded fit range and more ways to adjust your riding position, it’s easier than ever to dial in your setup and get riding.

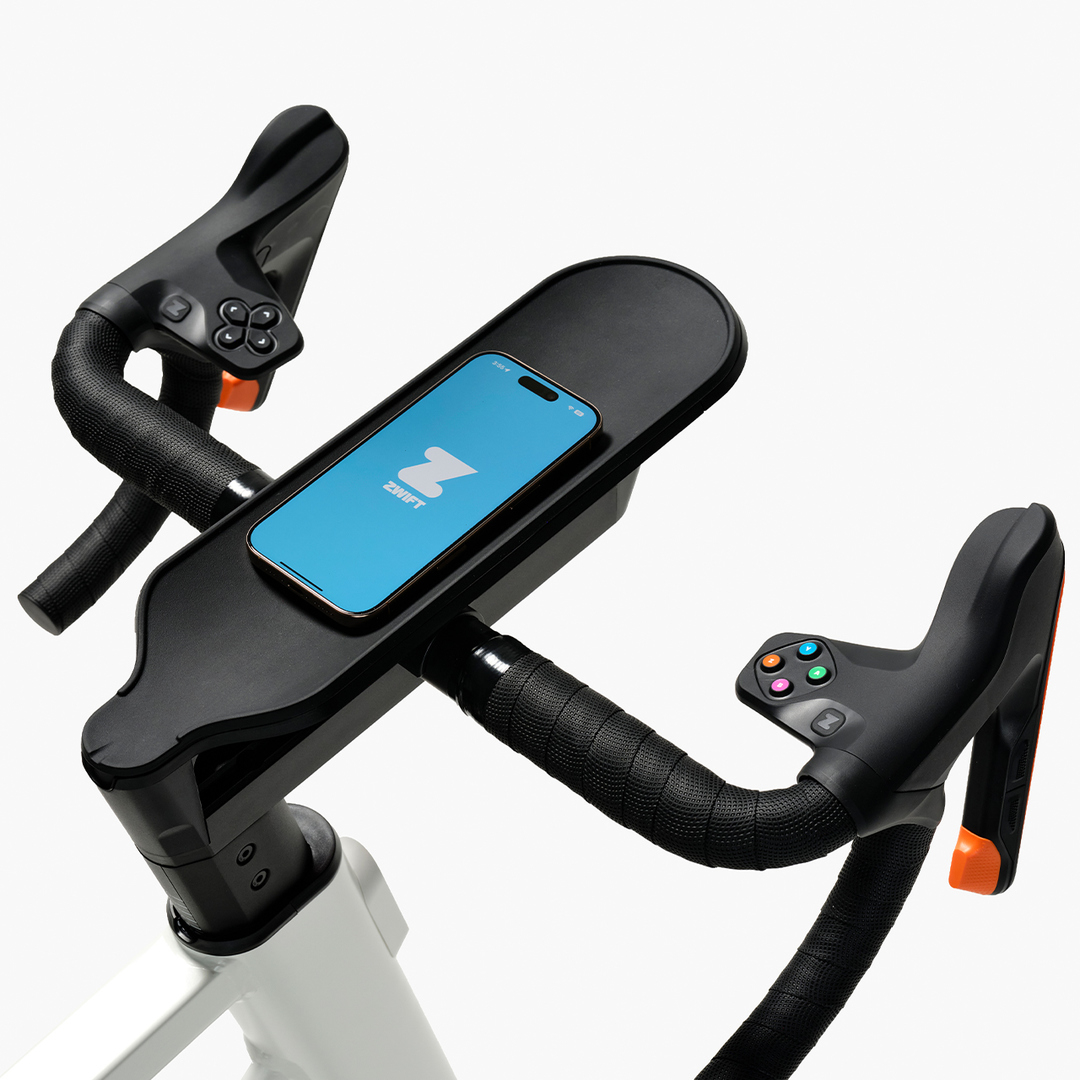

Full Control
Control all of Zwift without ever taking your hands off the bars. Navigate with ease to queue your next ride or workout, use PowerUps, give a Ride On, and more.

Real Feel
In-game gradient changes automatically adjust Zwift Ride’s resistance, so you’ll sweat it out on epic climbs and fly down descents just like you’re out on the road.

Smooth Shifting
Get ready for quiet, quick, and customizable virtual gear changes at your fingertips—with plenty of gears to choose from, you're always in the perfect gear, no matter the terrain.

An Even Better Fit
Adjustable cranks, expanded saddle adjustment, more comfortable handlebars and a wider fit range give you more ways to dial in your setup and ride your way.

Key Highlights

• All-In-One - With everything you need to start Zwifting, Zwift Ride is your complete indoor cycling setup.
• Designed for the home - Zwift Ride offers a space-saving, quiet setup that’s smaller than an outdoor bike on a smart trainer.

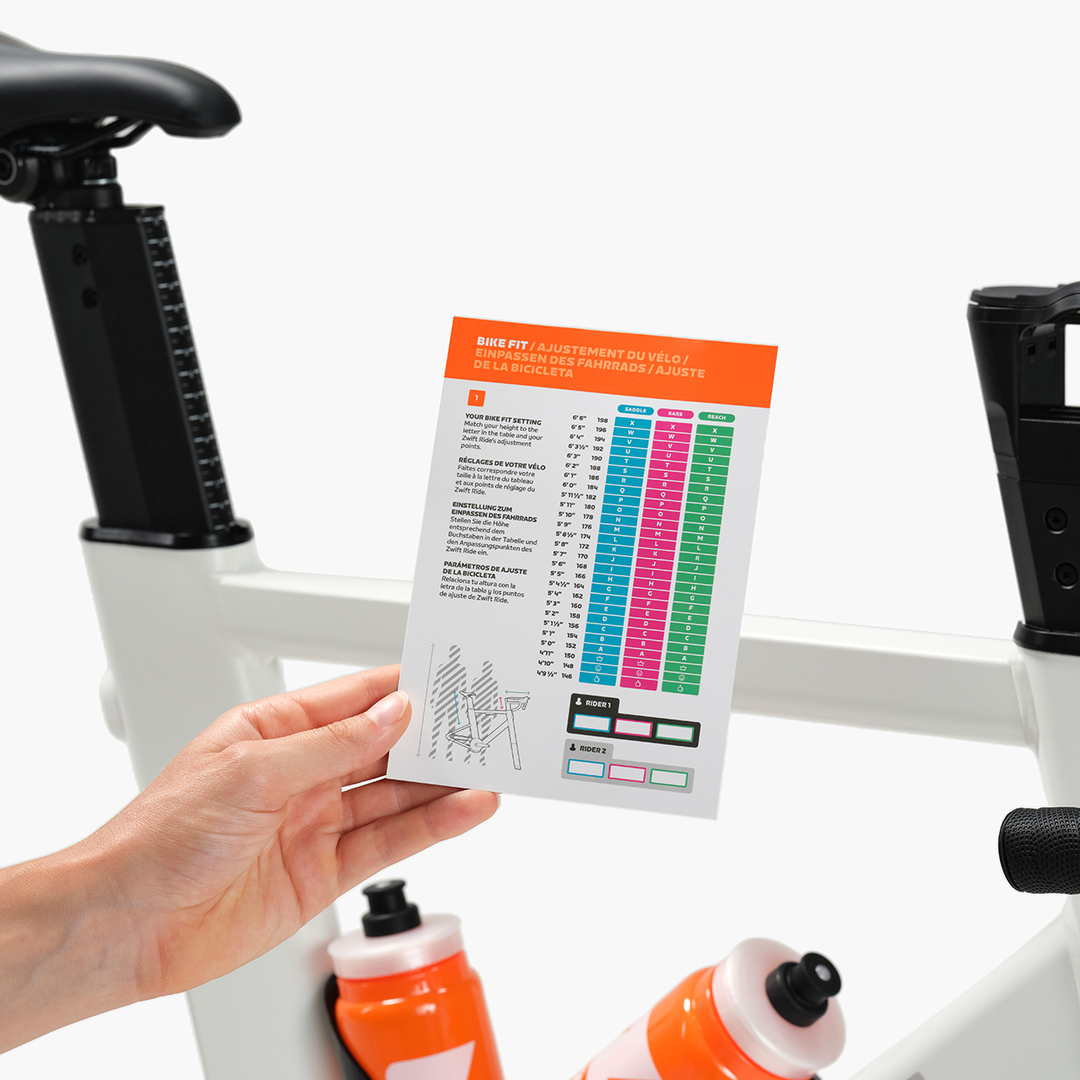

• Easily adjustable - Easily adjustable to fit a wider range of riders- from 146 - 198 cm. Zwift Ride comes with a bike fit card to help you get setup quickly.
• Real Feel - In-game gradient changes automatically adjust Zwift Ride’s resistance, so you’ll sweat it out on epic climbs and fly down descents just like you’re out on the road.
• 24 virtual gears - Get ready for 24 quiet, quick, and customizable virtual gear changes at your fingertips.

WHAT'S INCLUDED

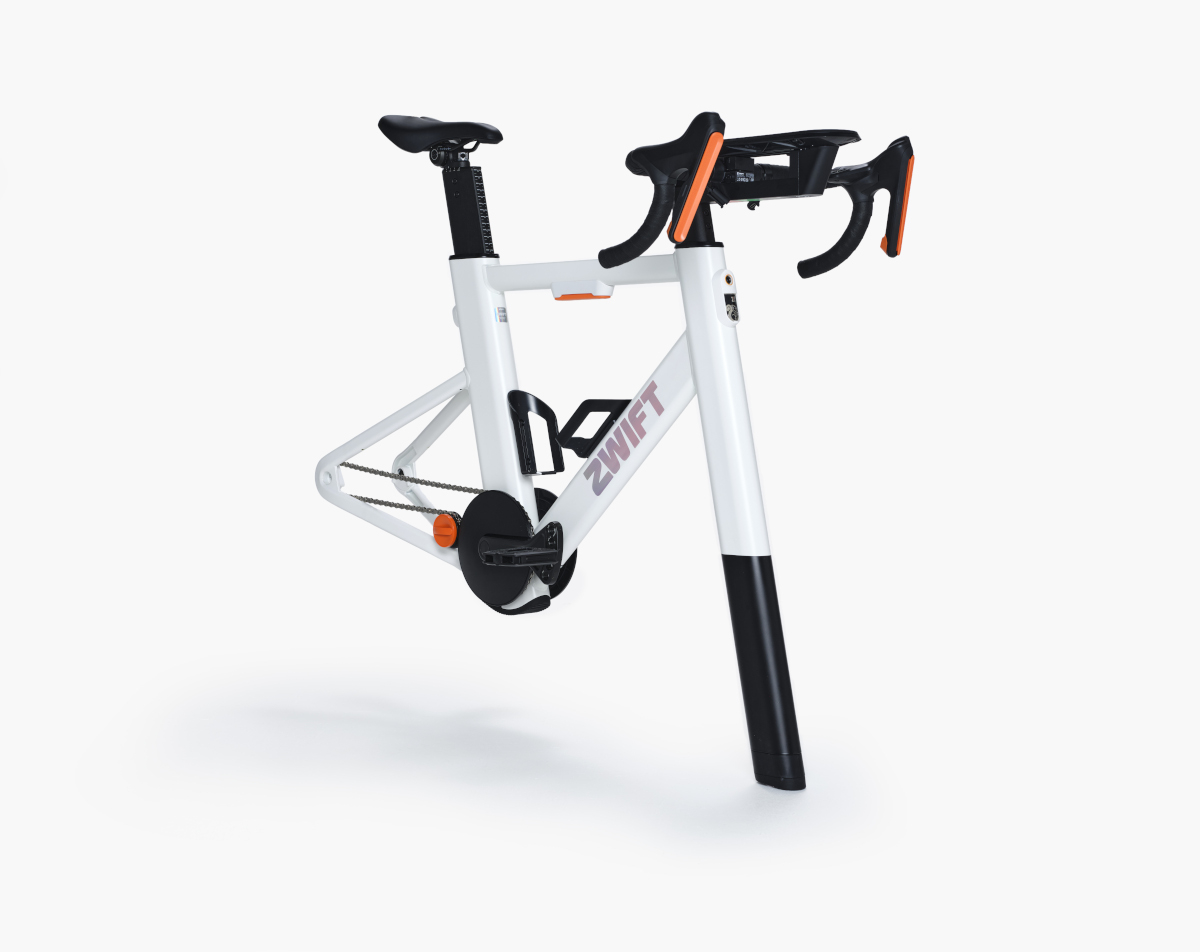

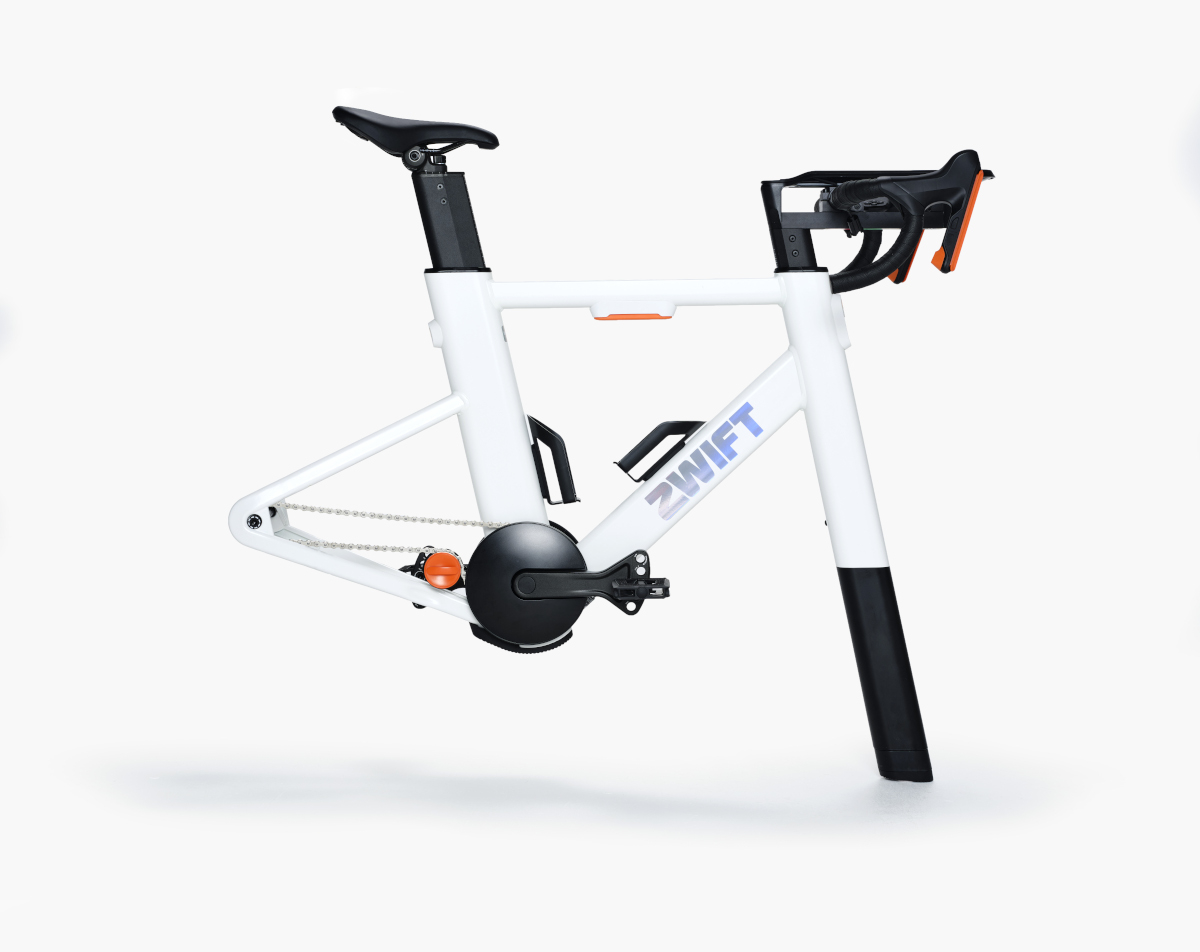

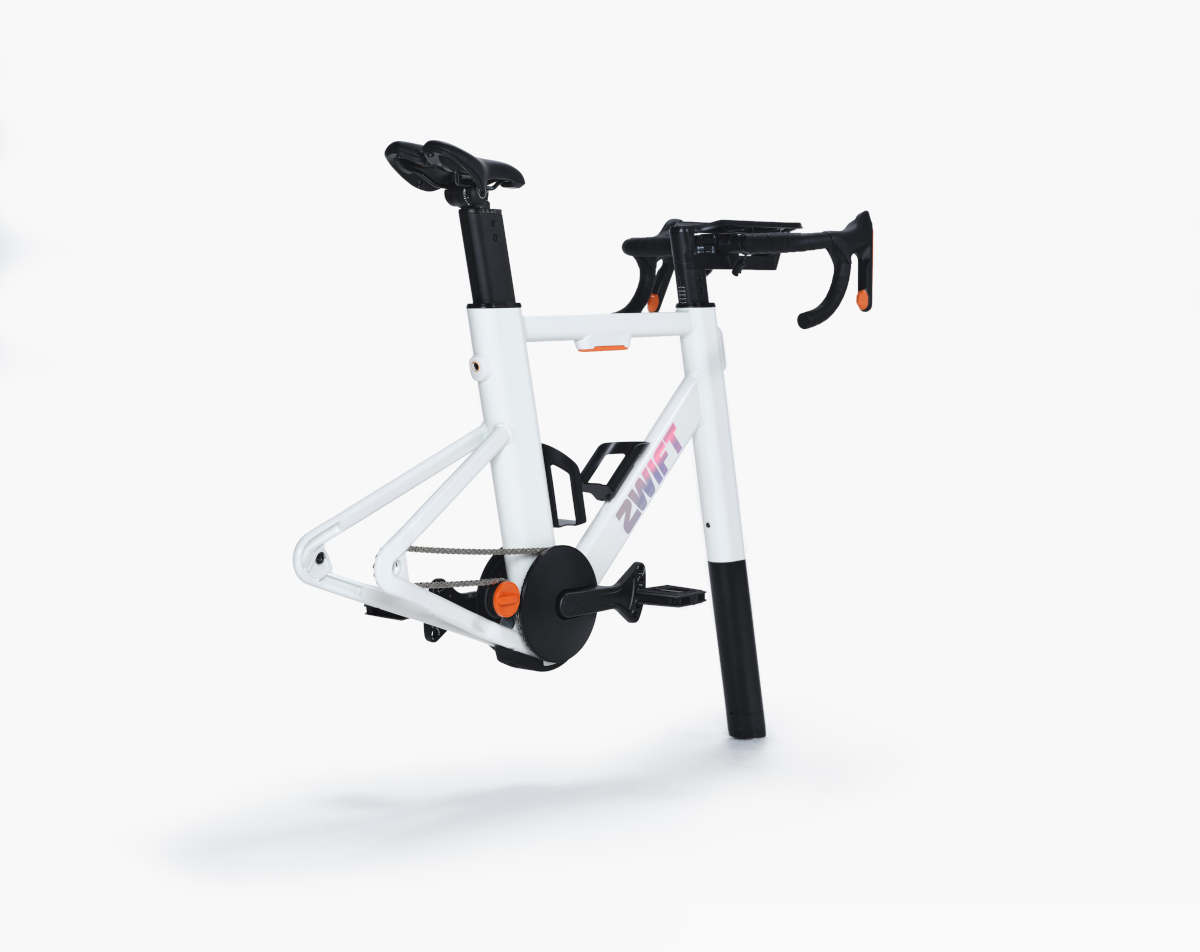

• ZWIFT RIDE Smart Frame (with Adjustable Cranks - 160mm to 175mm)
• ZWIFT COG v2**

**NOTE

The Zwift Ride Smart Frame is not compatible with Tacx or Elite trainers which do not already have a Zwift Cog installed, and Wahoo KICKR v5 or earlier models due to hardware and firmware limitations.

If you have a ZR-compatible TACX or ELITE trainer without ZWIFT COG preinstalled, you will need to purchase a separate upgrade kit:

• ZC02-P-CCE000 - ZWIFT Click + Cog v2 Trainer Upgrade Pack (for ELITE)
• ZC02-P-CCT000 - ZWIFT Click + Cog v2 Trainer Upgrade Pack (for TACX)

SPECIFICATIONS

Rider Fit Specs

• Rider Fit Range: 146 - 198 cm
• Saddle Height Min-Max: 57.1 - 86.5 cm (center bottom bracket to top of saddle)
• Stepover Height: 73 cm
• Max Rider Weight: 120 kg
• Crank Length: 160/165/170/172.5/175mm (adjustable)

Product Dimensions and Frame Specs

• Product Dimensions: 110 cm L x 43.2 cm W
• Product Weight: 35.5 kg
• Drivetrain: Chain (KMC Z1 narrow 3/32" width)
• Pedals: Flat Included (compatible with all standard road and mountain pedals)
• Saddle: 160mm W x 245mm L

Additional Handlebar Specs

• Handlebar Height Min-Max: 86.3 - 102.4 cm
• Handlebar Width: 42 cm (center to center)
• Integrated rechargeable controllers with 20 hrs. Per charge
• Handlebar Controller Power: Built-in rechargeable lithium-ion battery (1050 mAh)
• Handlebar Controller Power requirements: USB-A, 5v, 1A

Compatibility

• Compatible with Zwift Cog v1 & Zwift Cog v2. Updated Zwift Cog v2 included with purchase.
• Update to latest firmware using manufacturer’s app.
• Front Leg Riser Feet included for trainer height alignment (1x Small, 1x Large)

Connectivity

• Not compatible with ANT+ dongles
• In-game shifting, steering and UI control via handlebars are wirelessly transmitted via Bluetooth
• Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections

ZWIFT COG V2 compatibility

• Zwift Cog V2 is only compatible with the smart trainers listed in the ZWIFT product selector
• Works with WAHOO
• Designed to fit a Shimano Hyperglide freehub body.
• Not compatible with Shimano Micro Spline, SRAM XD/XDR, and Campagnolo freehub bodies.
• For use on Direct Drive Indoor trainers only.

Additional Specs

• Unit has a 14-tooth Cog - this COG version is NOT compatible with TACX smart trainers, as well as Elite smart trainers which require an alternate 18-tooth cog version
• 10 sprocket positions for quick chain alignment.
• Material: Plastic housing and lockring with steel sprocket
