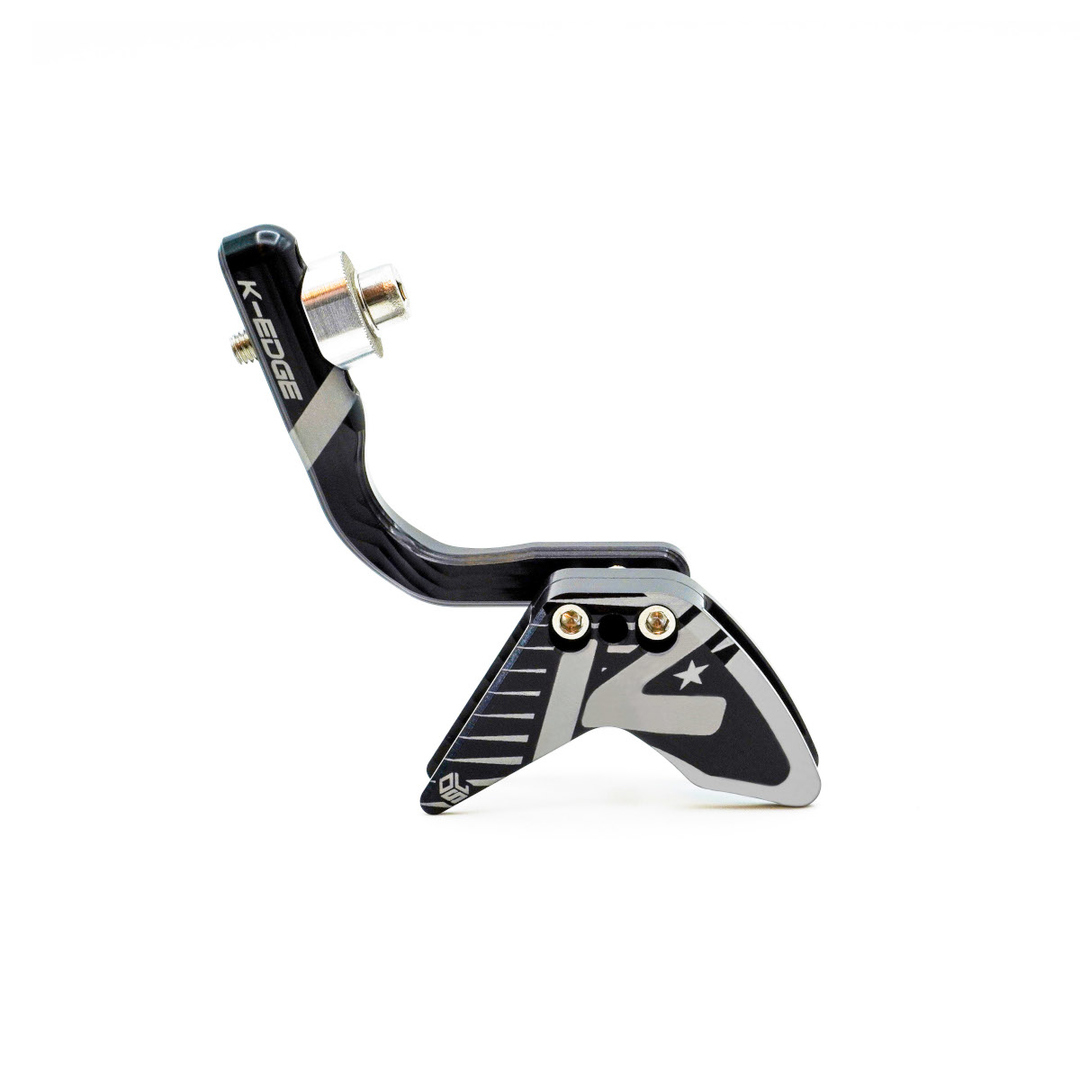

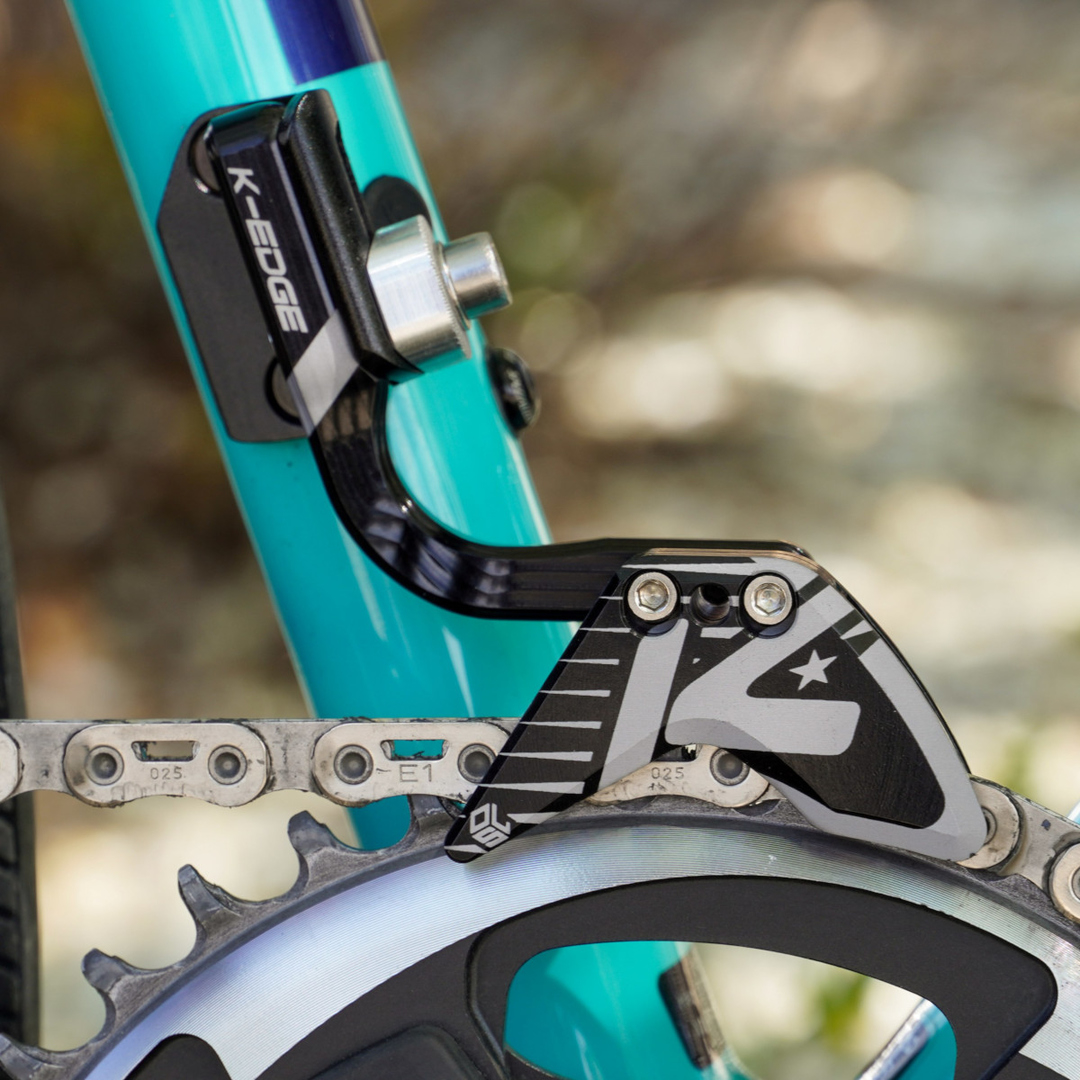

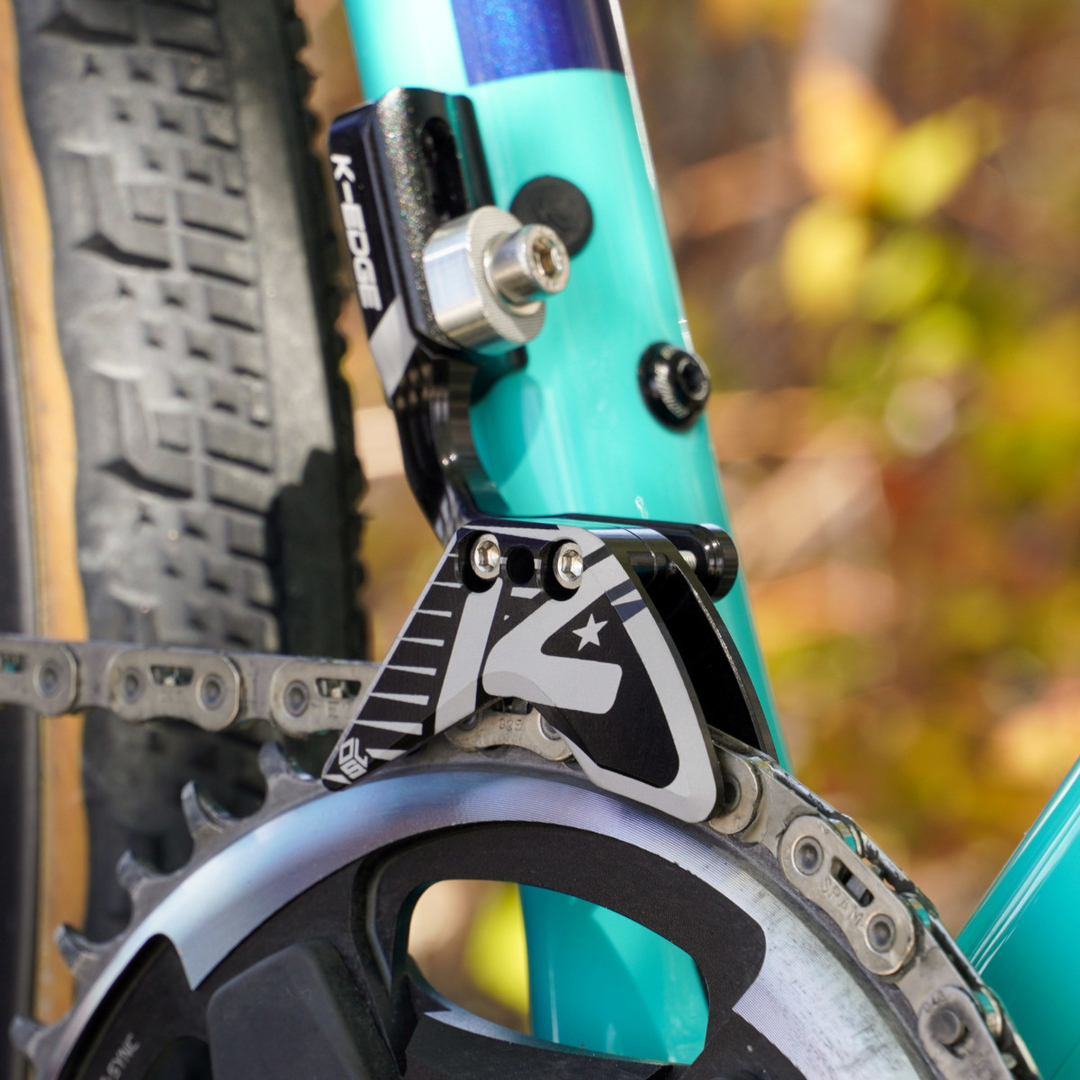

The new Elevate Race Chain Guide design gives full coverage protection and automatic chain re-seating while removing the risk of chain binding on the backpedal. The updated design reduces weight by 26%, is more aero and easier to install. Designed for greater compatibility with 11, 12, and 13 speed drivetrains and larger cassettes. K-EDGE’s Opposing Locking System™ 2.0 let’s you set it and forget it, for a lifetime of zero dropped chains.

The NEW K-EDGE Elevated 1x Race Chain Guide – lighter, faster, stronger.

• 26% lighter weight
• Elevated design – allows bind-free backpedal and auto reseating front pedal
• Easier & Quicker Installation & Adjustment with K-EDGE (OLS) Opposing Locking System™
• Compatibility with larger cassettes like SRAM Eagle
• Sleeker aero clamp arm
• More compatibility across different drivetrains & frames
• 11,12,13-spd Compatible
• More Chain guide options- standard, large ring, waterbottle cage, wider gearing, specific TT bikes of the pro peloton …

“Why Elevated”

This guide is designed to allow the derailed chain to rise above the front chainring teeth, avoiding the forces of binding during a derailed backpedal and then reseat on the chainring upon forward pedaling.  This takes out the most dangerous effects of a derailed chain in the 1x system and reseats the chain upon pedaling, leaving the rider to simply focus on the ride.

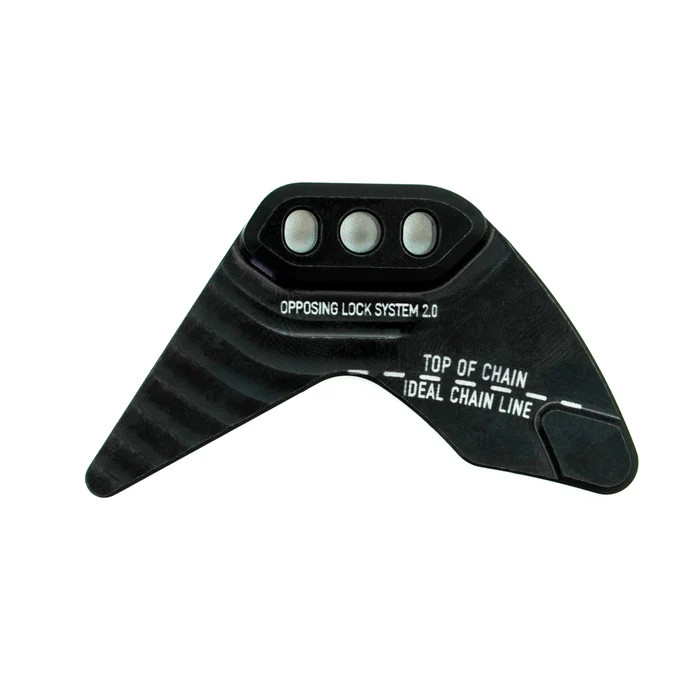

“What is K-EDGE’s Opposing Locking System™?”

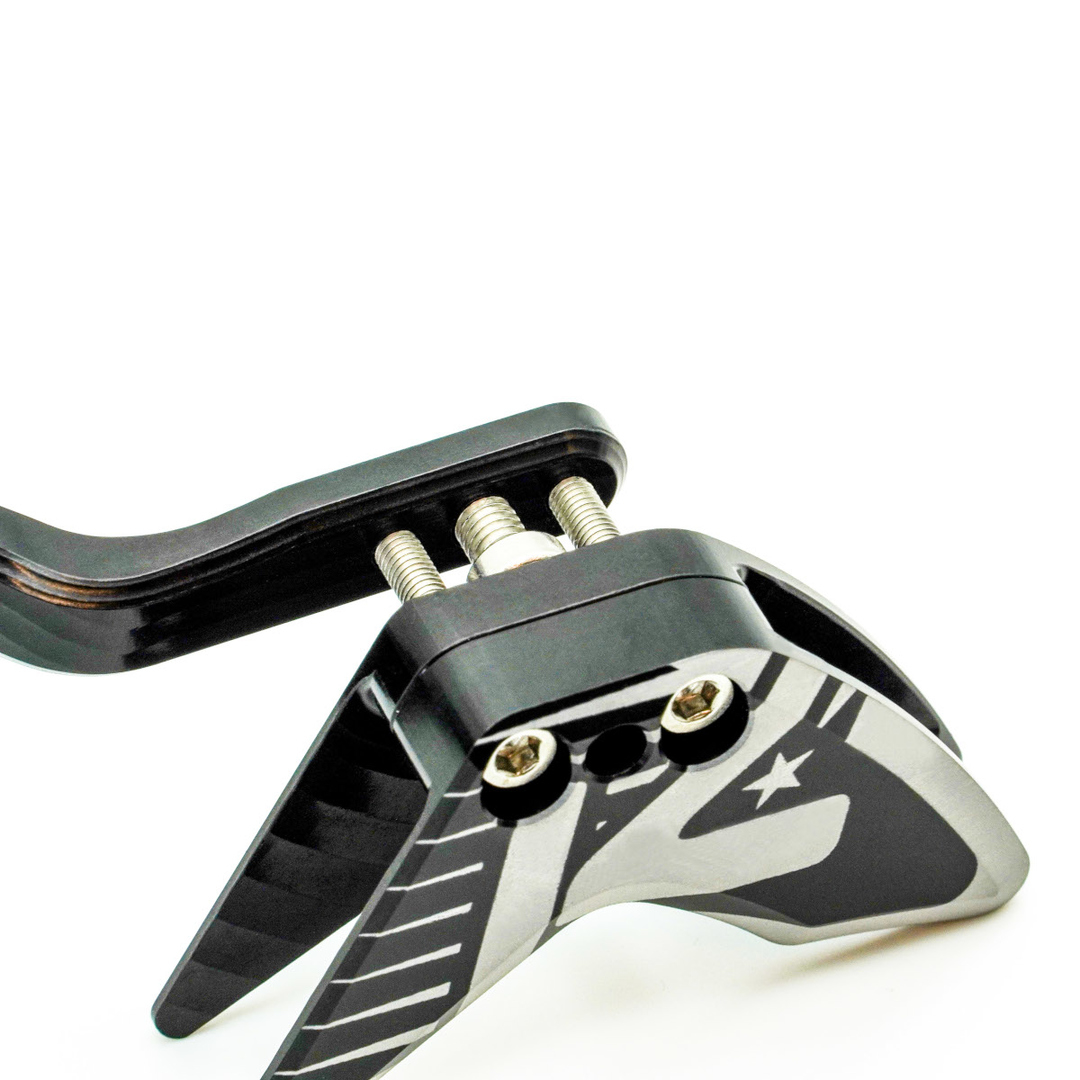

Three easily accessible screws allow easy adjustment for the diverse frames and braze-on locations and modern drivetrains found in today’s gravel, road and TT bikes.  Set your inside and outside limit and dial in the variable yaw of your chainline once with the opposing screws.  Once set, enjoy the rock solid security of this guide ensuring zero dropped chains for the lifetime of your bike.

TWO SIZE/MODELS

Refer to measurement chart (coming soon) to choose the right chain guide for their bike/chainring:

• K-EDGE 1x ELEVATED Race Chainguide (SKU: K13-180E) Chainring Range: 40Tooth-52Tooth (Dependent on Braze-On-to-BB Axis Location)
• K-EDGE 1x ELEVATED Large Ring Race Chainguide (SKU: K13-180-LR)- Chainring Range: 52Tooth-68Tooth (Dependent on Braze-On-to-BB Axis Location)
