Engineered pro performance, responding to every breakthrough. PES unleashes your potential on daily rides & training. Break your limits, ride beyond.

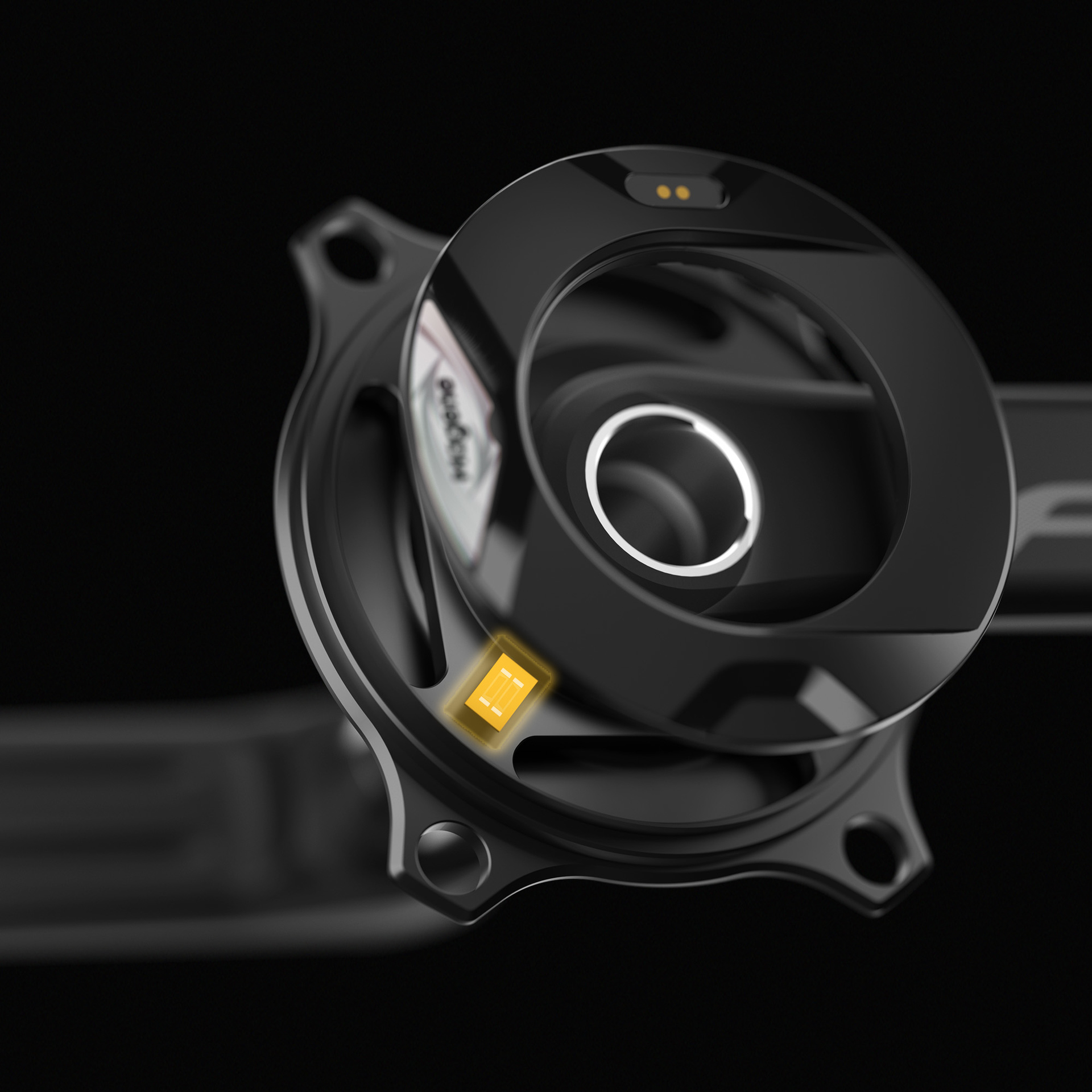

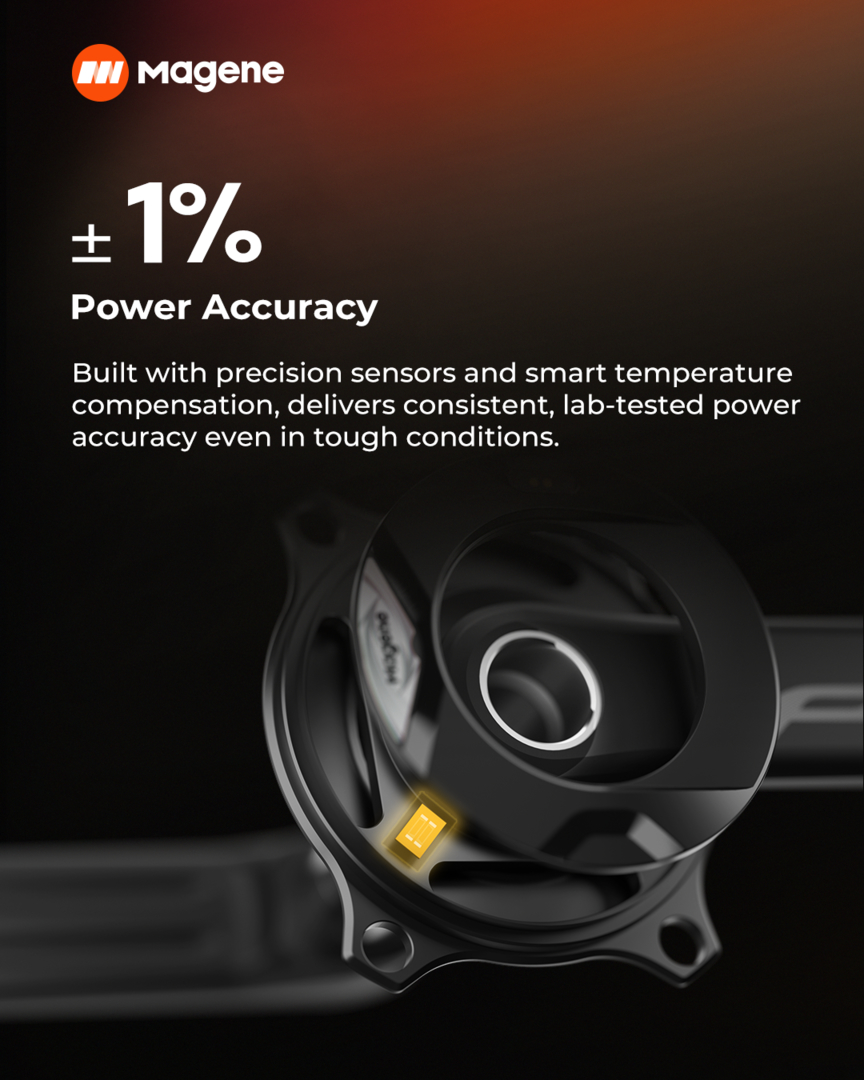

The PES P515 power meter employs high precision strain gauges & acceleration sensors. Combined with built-in intelligent temperature compensation algorithms, it can provide precise & reliable power data anytime & anywhere, even when the environment changes constantly.

Extensively tested in harsh environments with highly demanded standards, with each strain gauge undergoing stress release. PES P515 guarantees a ±1% power accuracy, never letting you spend your effort in vain.

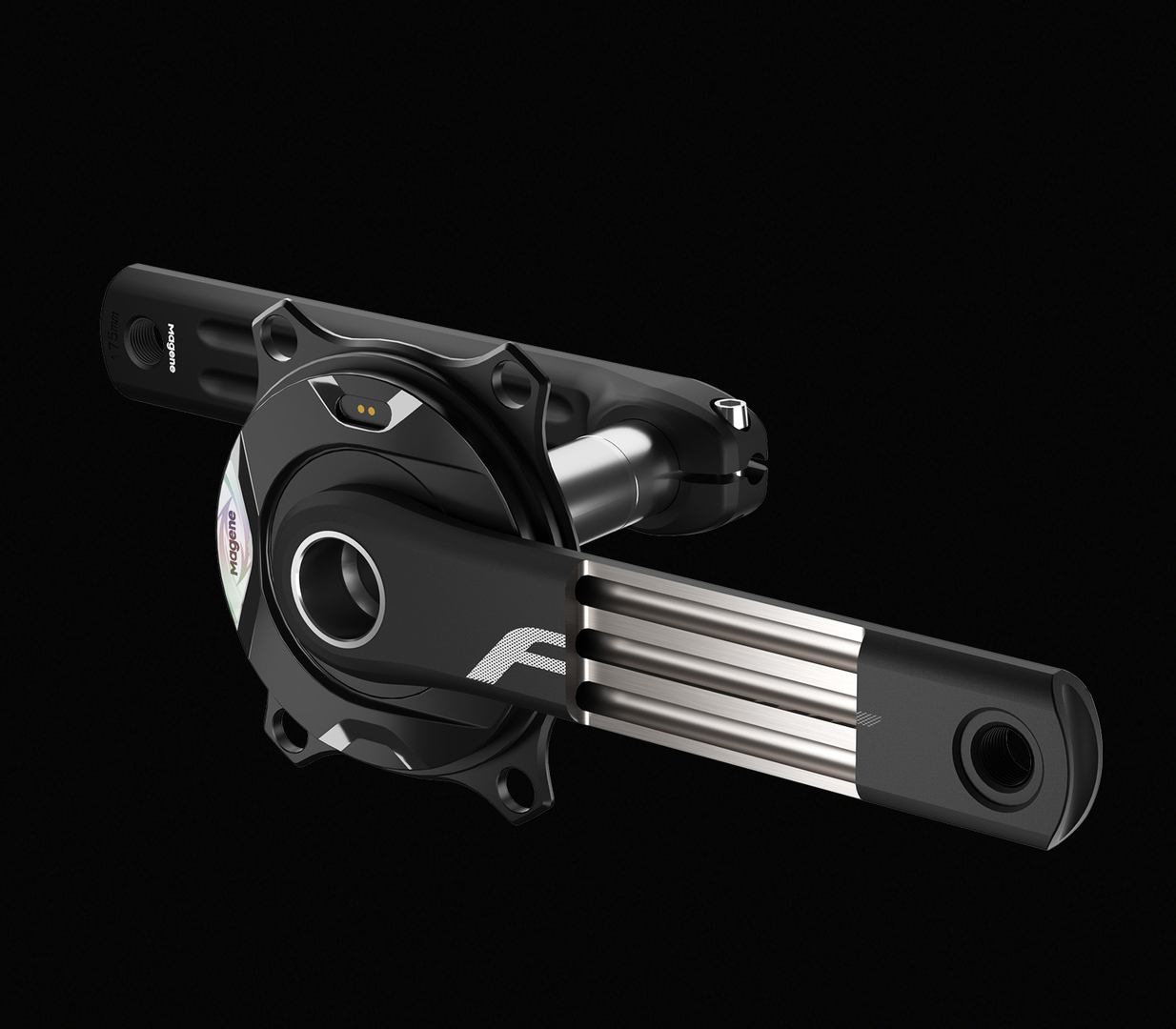

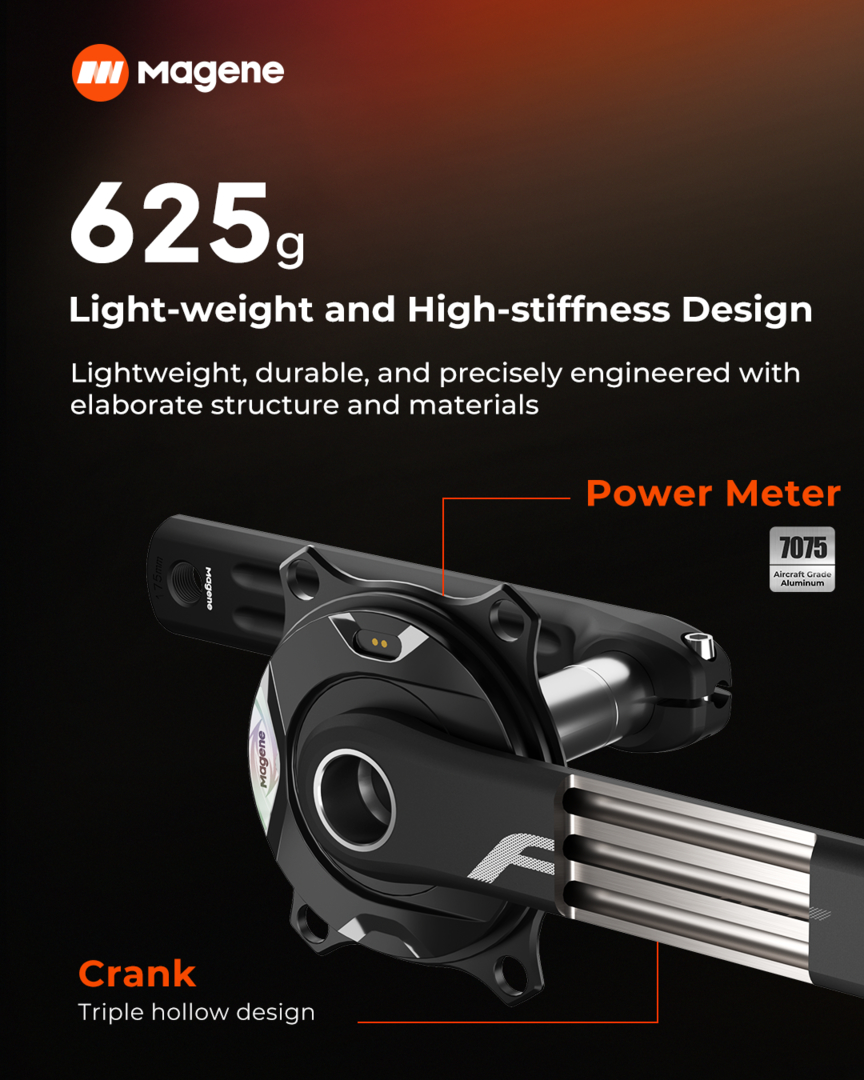

The PES crank adopts a triple hollow channel design. The extensive hollow spaces reduce weight greatly without affecting performance. The crank is integrally molded by applying precise CNC with deep-hole drilling techniques. While optimising the sealing technique, the force structure is completely enhanced with a symmetrical design. Tested¹ to over 100,000 revolutions of harsh pedal strokes, the PES crank still performs with excellence.

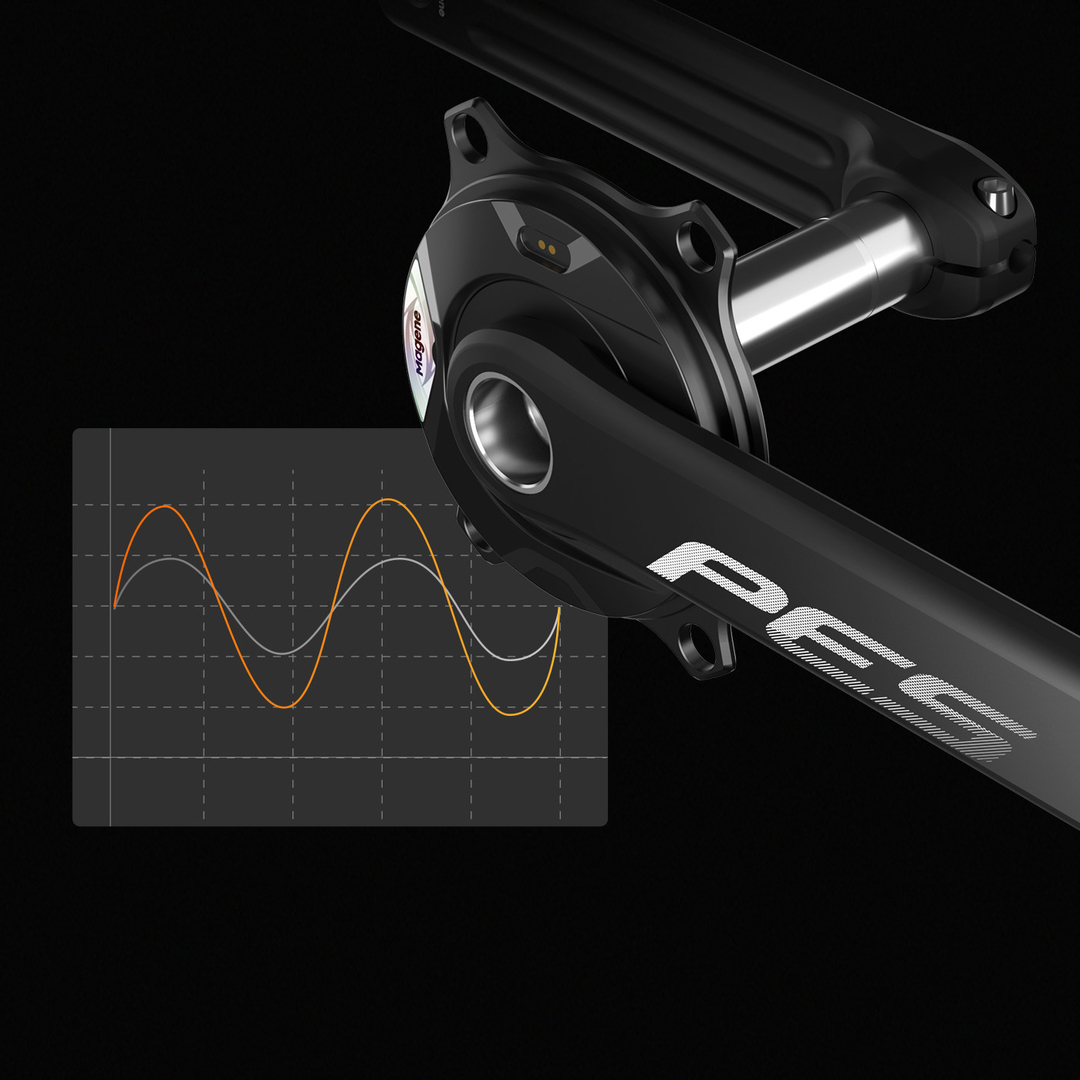

The P515 Power meter applies a new circuit design to effectively improve power consumption efficiency & reduce power loss during cycling. Fully charged, P515 can support you for up to 240 hours² of long distance riding & training.

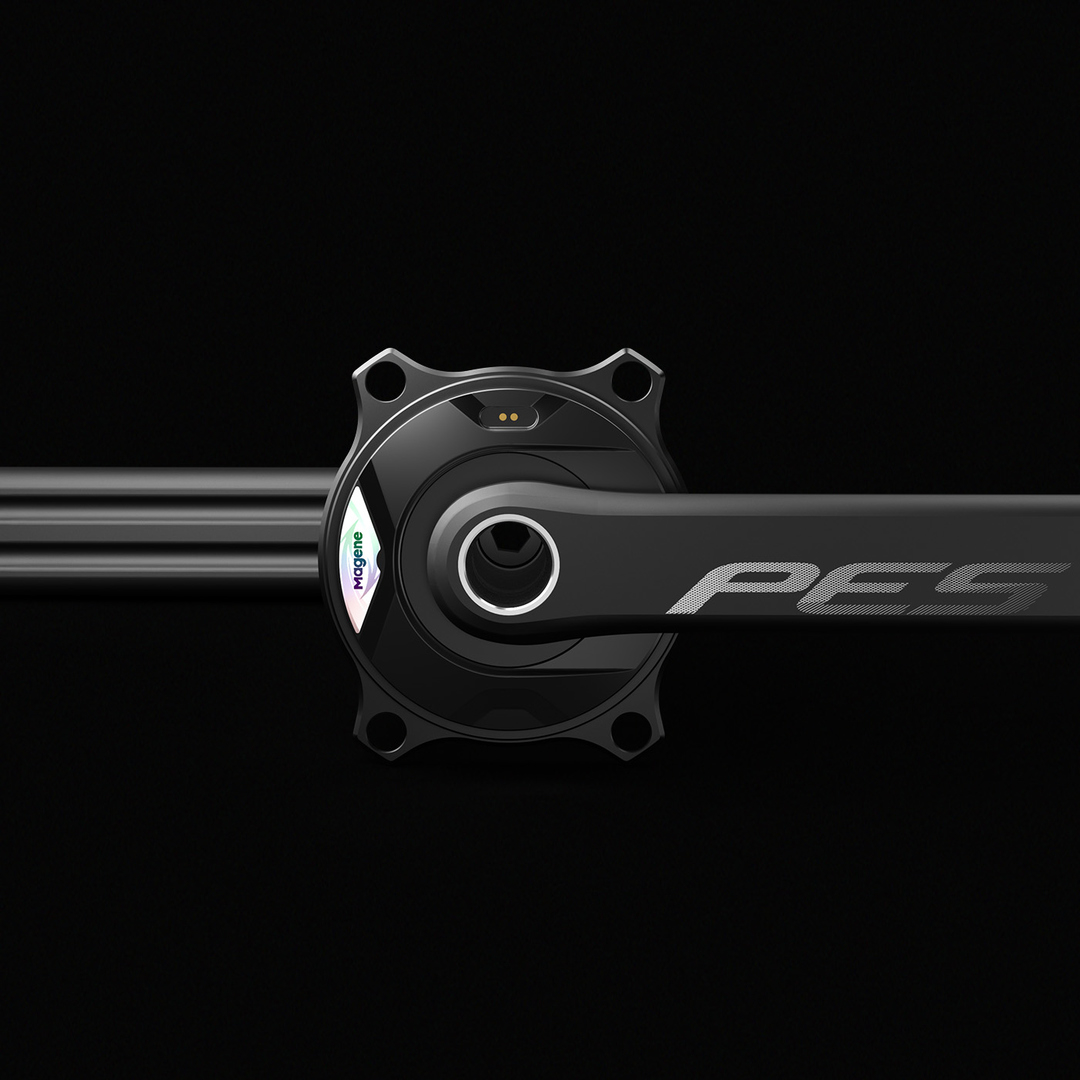

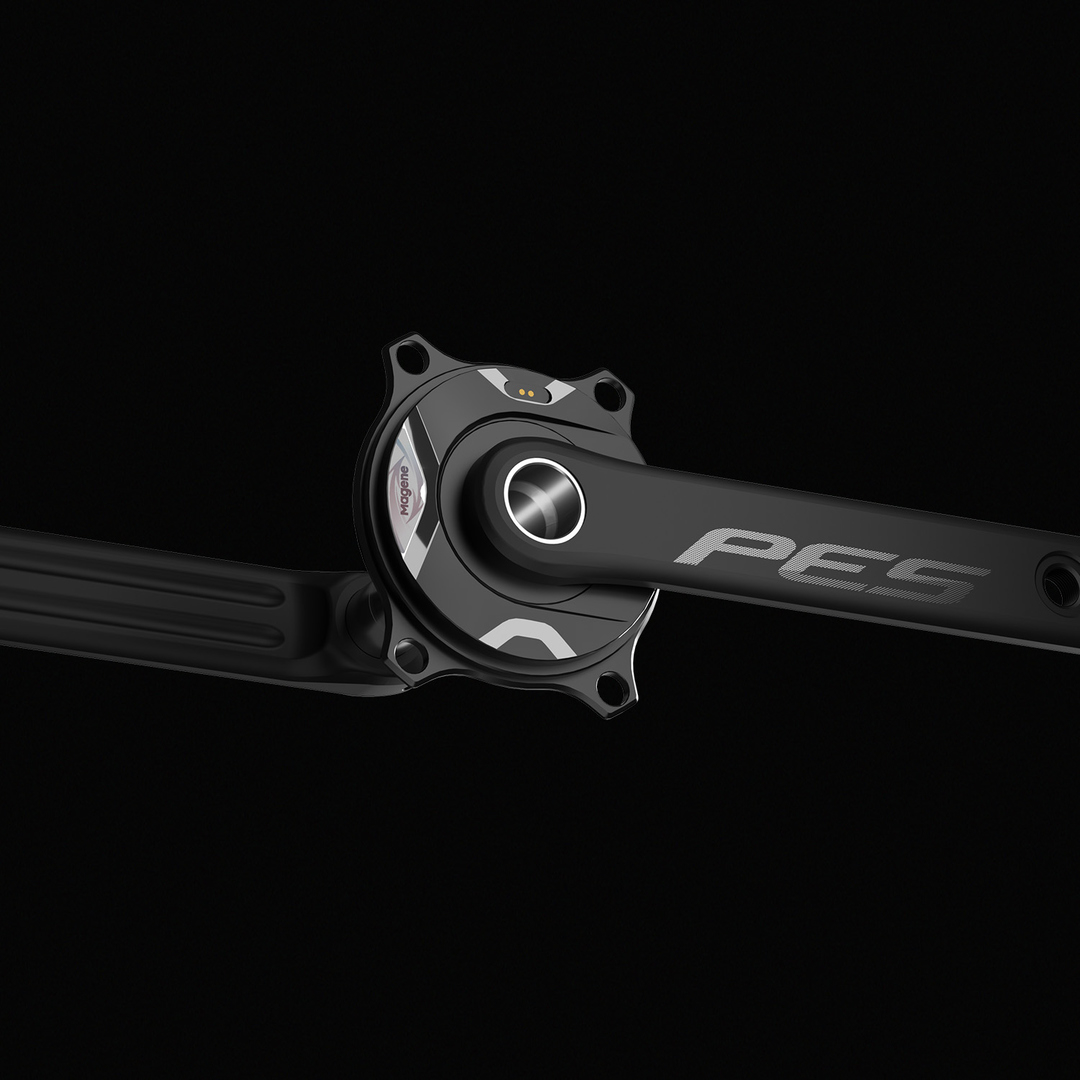

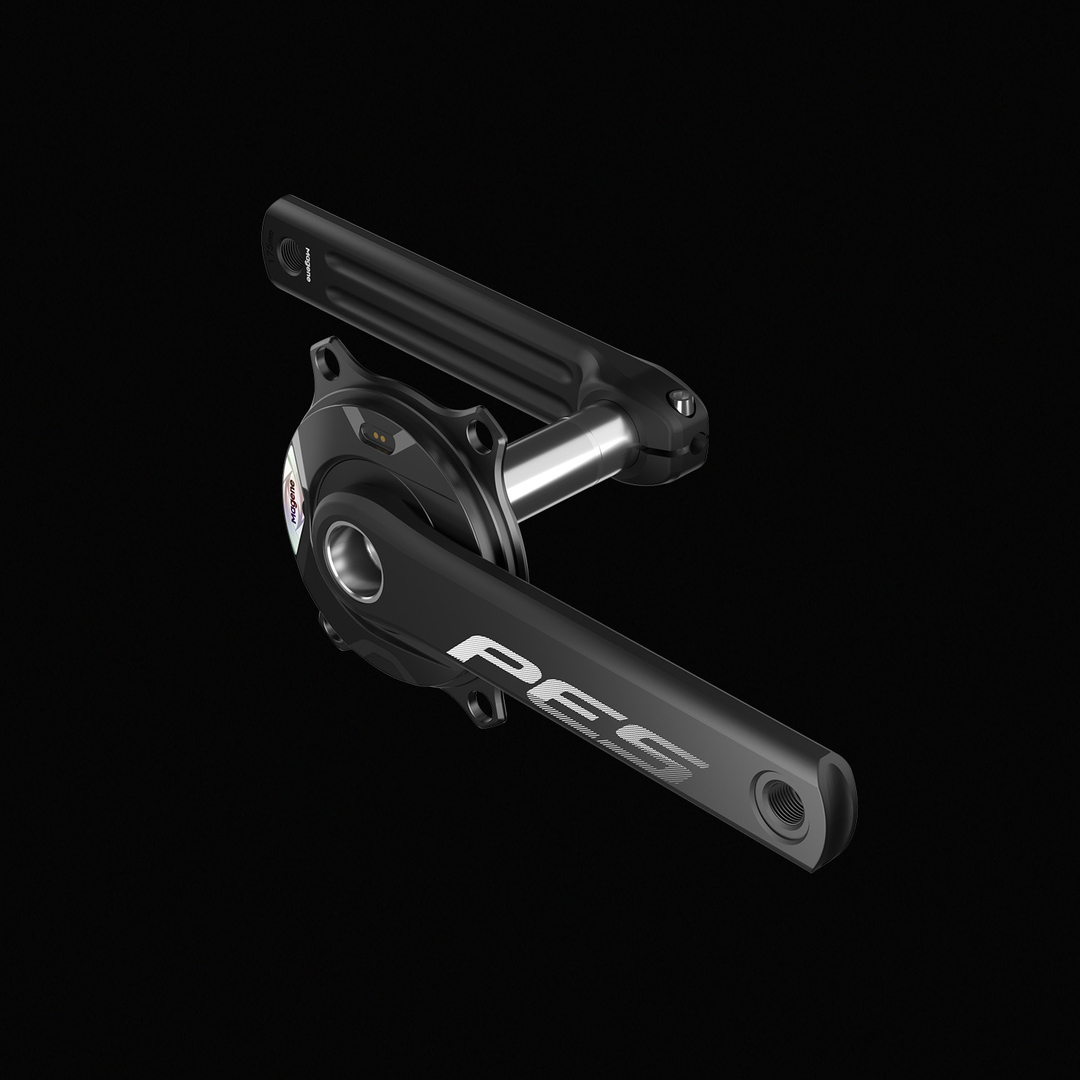

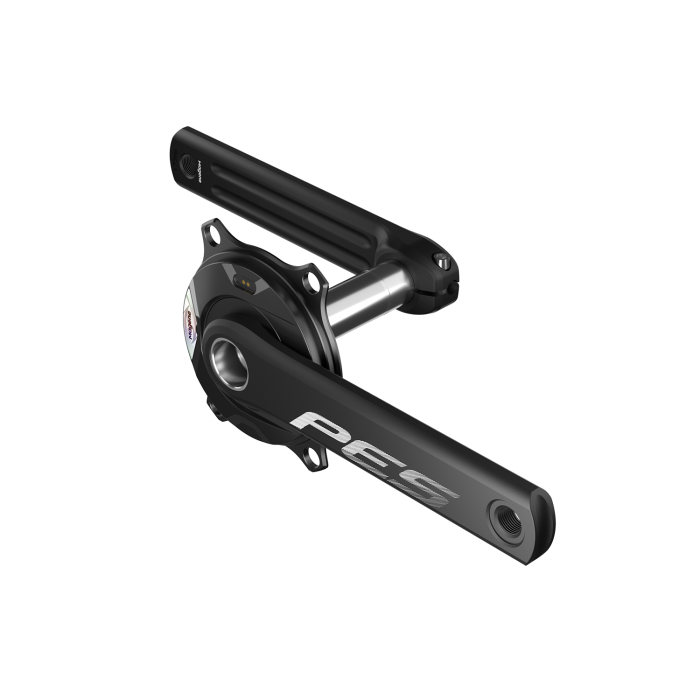

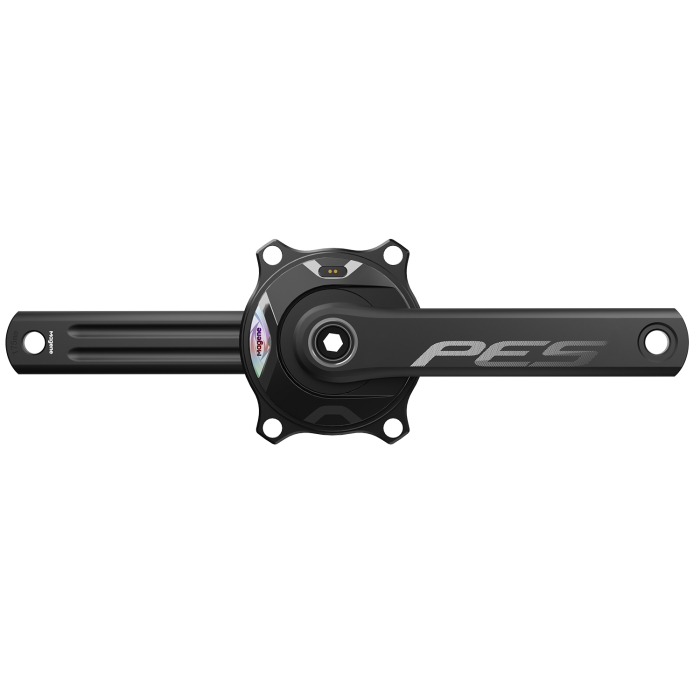

The PES P515 power meter set includes the P515 spider power meter & PES20 crank. This bundle eliminates the confusion of choosing compatible components. Providing consistent & reliable performance without the worry around interference problems potentially caused by third party products.

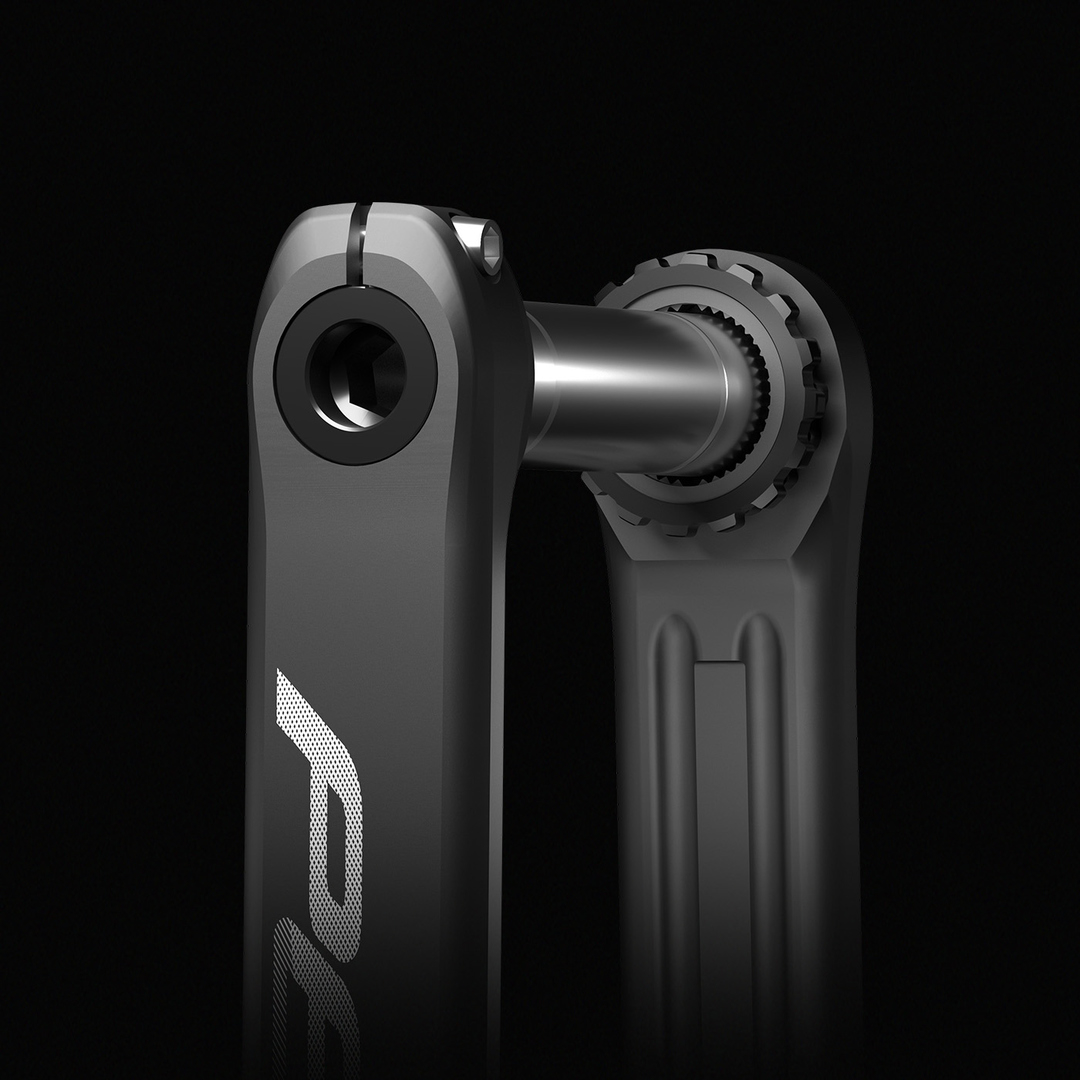

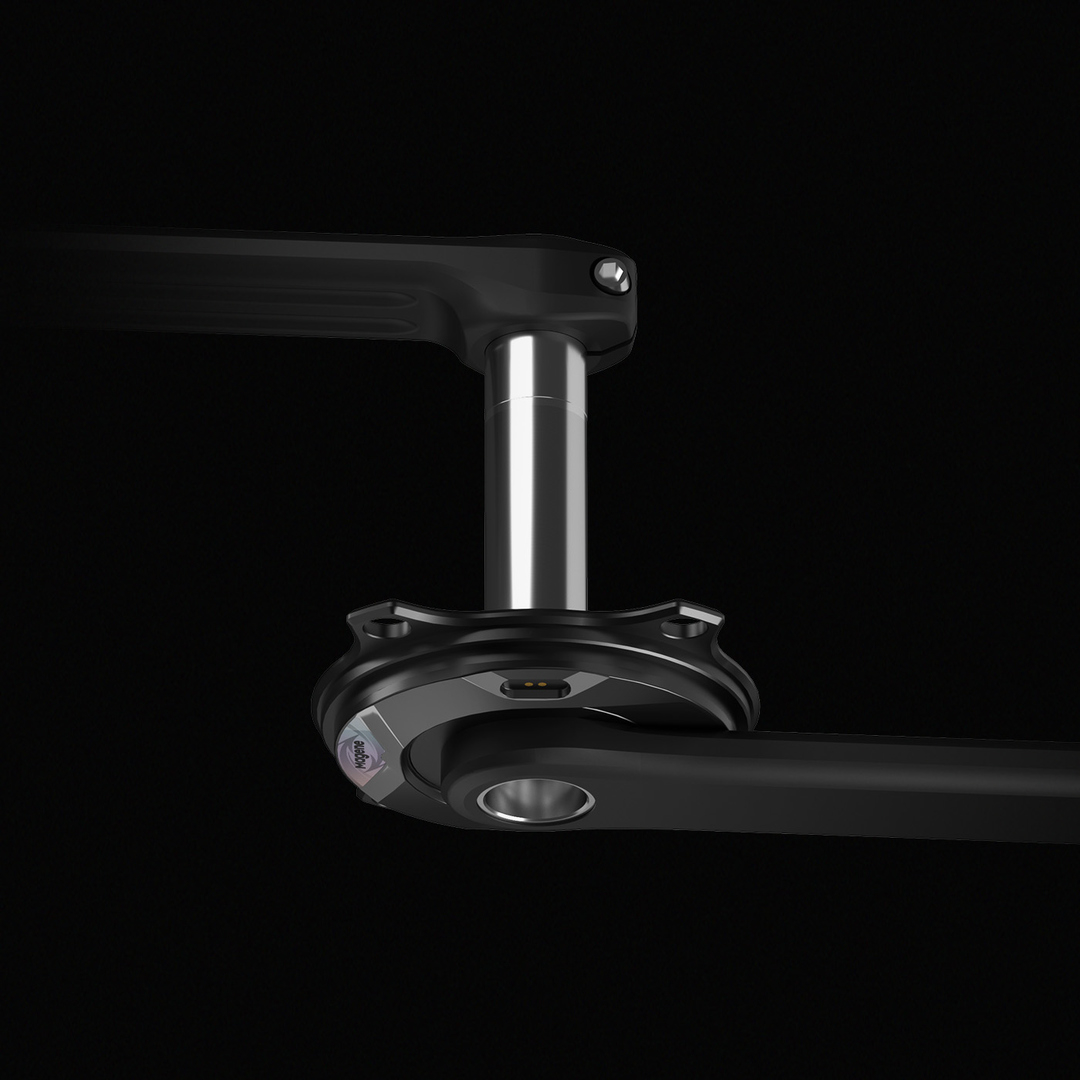

The P515 power meter adopts the widely available 110BCD four bolt specification, which has more comprehensive compatibility. MAGENE also offer the QED chainring set in three sizes, 53/39, 52/36 & 50/34. Featuring a 24mm spindle, PES P515 is compatible³ with standard road bike bottom brackets, including large standards such as T47 & BB386. SHIMANO users can install the PES P515 directly, without replacing the bottom bracket.

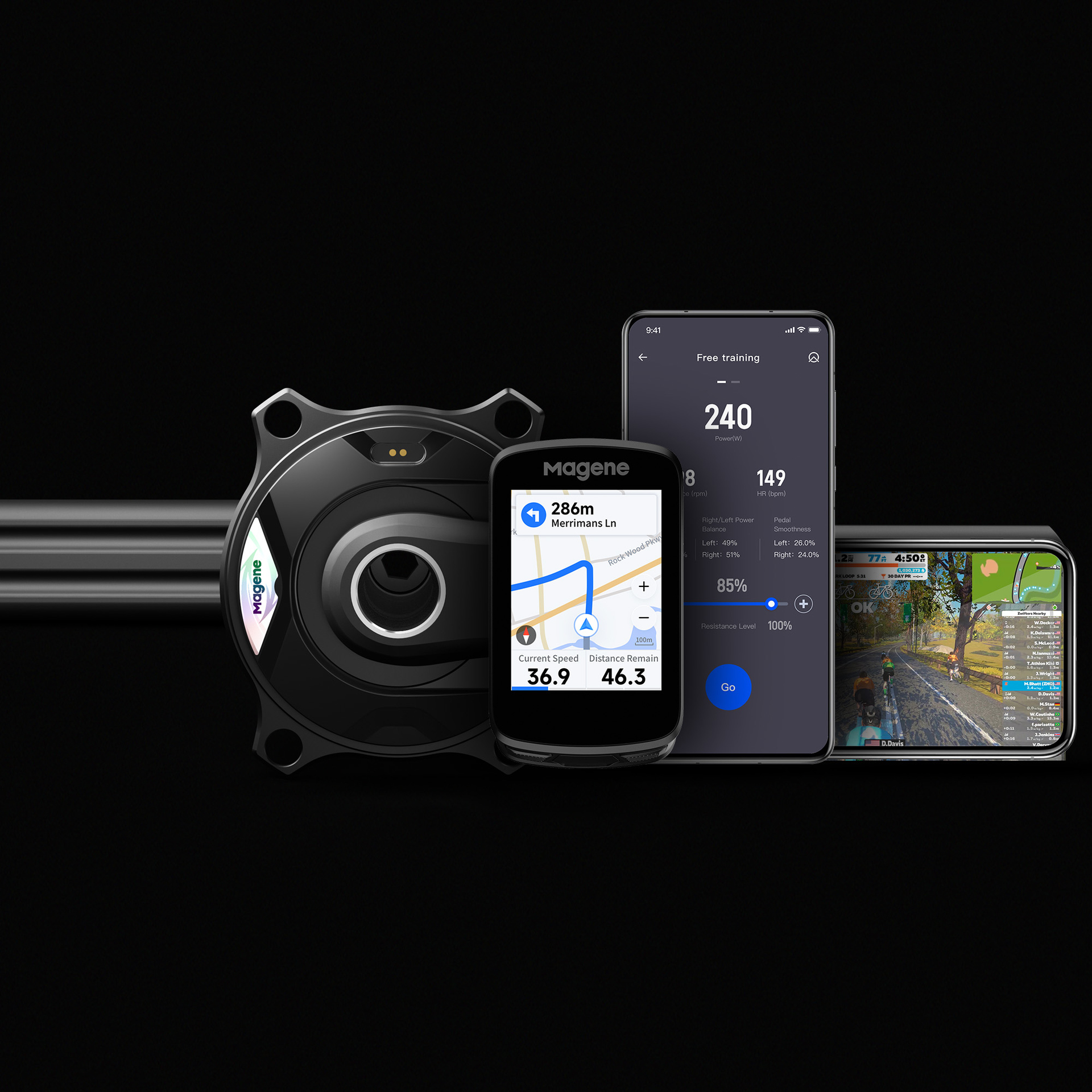

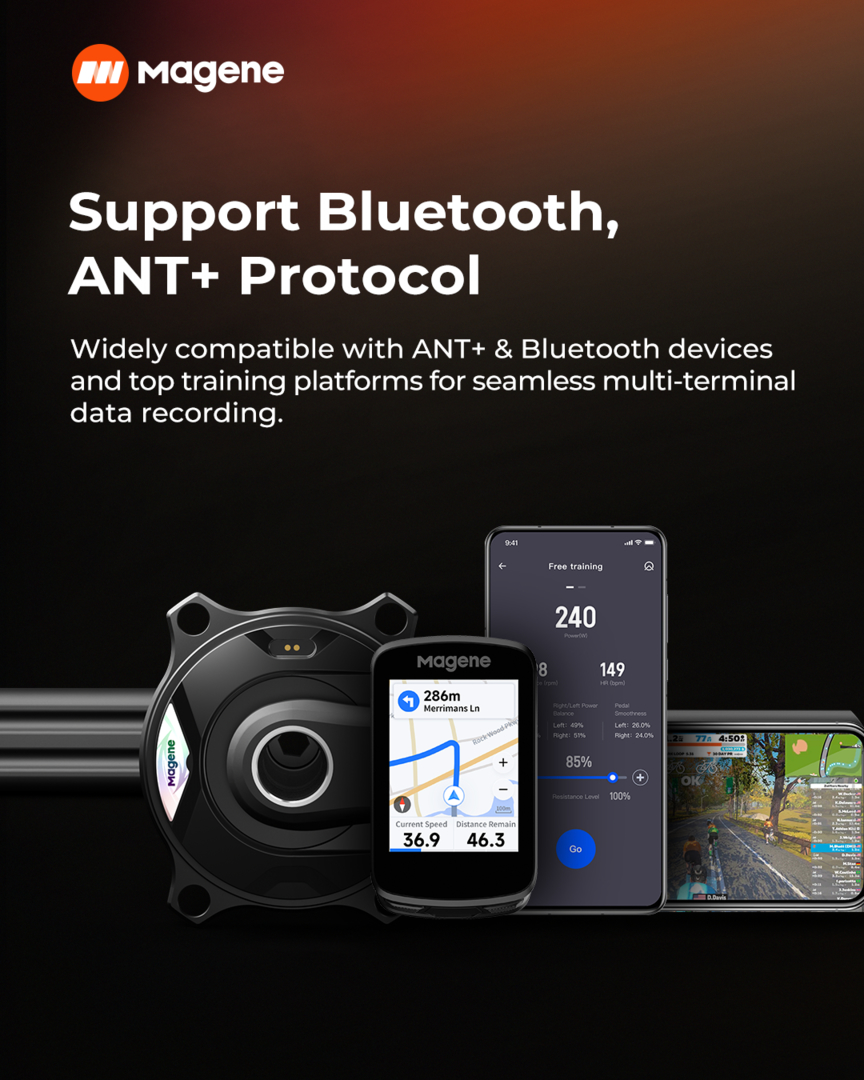

Compatible with various ANT+ & Bluetooth devices, the P515 can be connected to major brand bike computers & training APPs.

Specifications:

• PES P515 power meter set
• 625g±5g (170mm)
• 165mm/167.5mm/170mm/172.5mm/175mm
• Accurate to ±1%
• 24mm Spindle
• Compatible with 68mm/86.5mm standard road bike bottom brakets
• 4bolt 110BCD
• Chainline: 44.25mm
• Q-Factor: 147mm
• Power range: 0~2500w
• Cadence range: 20~240RPM
• Data Function: Power, cadence, left/right balance, pedalling smoothness
• Calibration: Automatic calibration, backpedal calibration, manual calibration
• Wireless protocol: ANT+, Bluetooth
• Waterproof rating: IPX7
• Working temperature: -20°C to 50°C
• Battery Life: up to 240hours
• Charging: Magnetic charging (cable included)

What's in the box:

• P515 spider power meter
• PES20 crank
• Magnetic charging cable
• quick start guide

¹The test data comes from MAGENE lab. It follows ISO4210 standard - apply 1800n weight * proceed fatigue test 100,000 times.

²The battery life is tested in MAGENE lab and may be affected by environment & temperature.

³Compatible with 68mm-86.5mm standard road bike bottom brackets.
